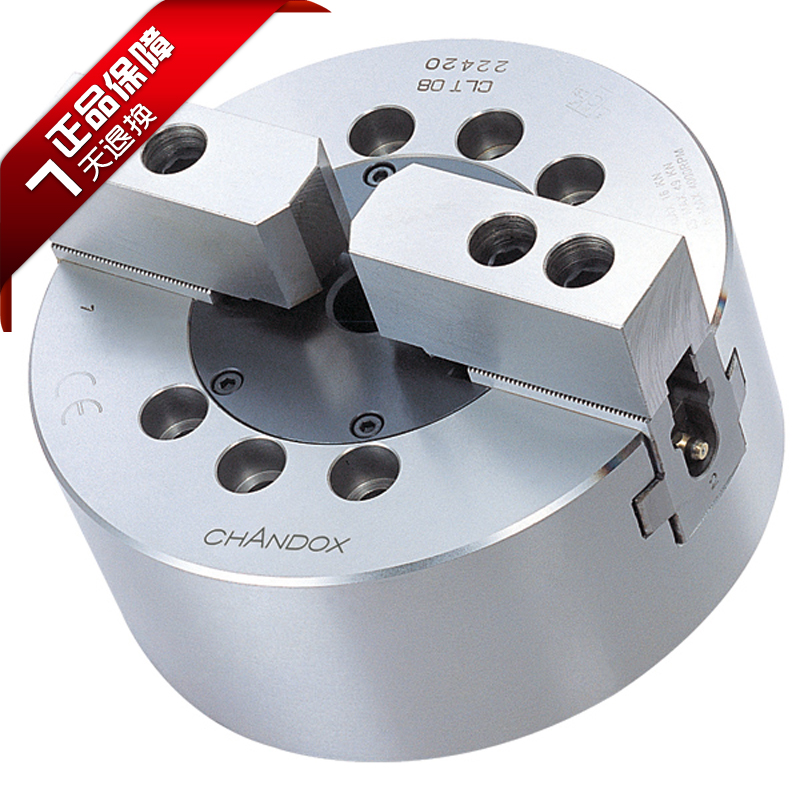

千岛二爪中实卡盘

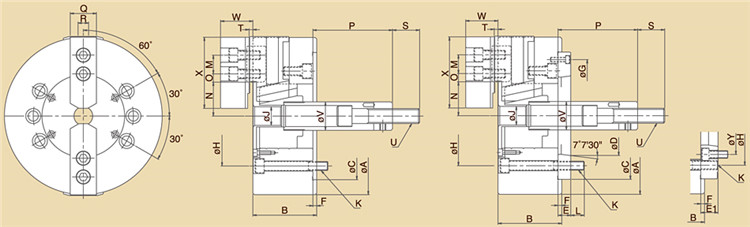

| 型式 / 規格 | 主軸鼻端番號 | A | B | C (h6) | D | E | E1 | F | G | H | J |
| CLT-06 | A2-5 | 165 | 74 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 | 21 |
| CLT-08 | A2-6(A2-5) | 210 | 85 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | 25 |
| CLT-10 | A2-8(A2-6) | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 34 |
| CLT-12 | A2-8 | 304 | 106 | 220 | 139.719 | 18 | - | 6 | 190 | 171.4 | 34 |
| 型式 / 規格 | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S |
| CLT-06 | 6-M10×1.5P | 14 | 20 | 37.8 | 33.25 | 15.1 | 9.1 | 101.5 | 81.5 | 31 | 12 | 36 |
| CLT-08 | 6-M12×1.75P | 18 | 25 | 46.3 | 41.9 | 22.1 | 10.1 | 127 | 106 | 35 | 14 | 36 |
| CLT-10 | 6-M16×2P | 25 | 30 | 51.4 | 47 | 30.6 | 9.6 | 158 | 133 | 40 | 16 | 36 |
| CLT-12 | 6-M16×2P | 25 | 30 | 60.7 | 55.45 | 48.6 | 12.6 | 163 | 133 | 50 | 18 | 36 |
| 型式 / 規格 | T | U | V | W | X | Y | 柱塞行程 (mm) | 爪行程[直徑] (mm) | 最高迴轉速 r.p.m (min-1) |
| CLT-06 | 4 | M16×2P | 34 | 39 | 73 | - | 20 | 8.5 | 5000 |
| CLT-08 | 5 | M20×2.5P | 38 | 42 | 95 | 104.8 | 21 | 8.8 | 4000 |
| CLT-10 | 5 | M20×2.5P | 45 | 46 | 110 | 133.4 | 25 | 8.8 | 3500 |
| CLT-12 | 5 | M20×2.5P | 50 | 54 | 129 | - | 30 | 10.5 | 3000 |
| 型式 / 規格 | 最大拉力 kgf (KN) | 最大靜夾持力 kgf (KN) | 最大設定油壓壓力 kgf/cm2 (Mpa) | 淨重 (kg) | 搭配油壓缸型號 | 夾持範圍 |
| CLT-06 | 1220 (12) | 3460 (34) | 17 (1.7) | 11.1 | L1020 (L1020R) | Ø9~Ø165 |
| CLT-08 | 1630 (16) | 4990 (49) | 16 (1.6) | 21.3 | L1225 (L1225R) | Ø12~Ø210 |
| CLT-10 | 1930 (19) | 7140 (70) | 19 (1.9) | 32.6 | L1225 (L1225R) | Ø15~Ø254 |
| CLT-12 | 2750 (27) | 10300 (101) | 20 (2.0) | 57.0 | L1530 (L1530R) | Ø20~Ø304 |
