千岛三爪中实卡盘

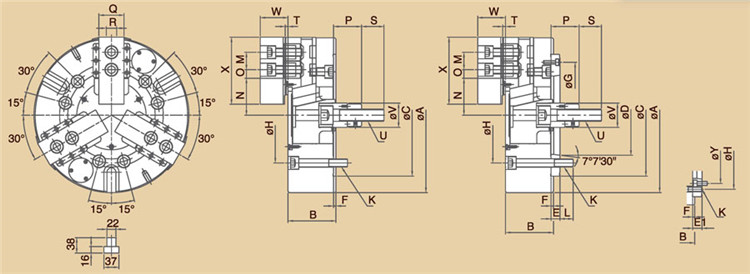

型式 / 規格 | 主軸鼻端番號 | A | B | C (h6) | D | E | E1 | F | G | H | K | L | M |
CL-15DP | A2-11 | 381 | 118 | 300 | 196.869 | 22 | - | 6 | 260 | 235 | 6-M20x2.5P | 32 | 43 |
CL-18DP | A2-11 | 450 | 118 | 300 | 196.869 | 22 | - | 6 | 260 | 235 | 6-M20x2.5P | 32 | 43 |
CL-21DP | A2-15(A2-11) | 530 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24x3P | 33 | 60 |
CL-24DP | A2-15(A2-11) | 610 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24x3P | 33 | 60 |
CL-32DP | A2-15(A2-11) | 800 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24x3P | 33 | 60 |
CL-40DP | A2-15(A2-11) | 1000 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24x3P | 33 | 60 |
型式 / 規格 | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | T | U | V | W | X | Y |
CL-15DP | 69.05 | 60.97 | 58.05 | 40.05 | 104 | 69 | 62 | 25.5 | 55 | 7 | M30×3.5P | 60 | 68 | 165 | - |
CL-18DP | 99.46 | 91.38 | 58.05 | 40.05 | 92 | 57 | 62 | 25.5 | 55 | 7 | M30×3.5P | 60 | 68 | 165 | - |
CL-21DP | 80.49 | 72.41 | 101.8 | 41.8 | 96.95 | 61.95 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
CL-24DP | 119.49 | 111.41 | 101.8 | 41.8 | 96.95 | 61.95 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
CL-32DP | 119.49 | 111.39 | 197.8 | 41.8 | 97 | 61.95 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
CL-40DP | 119.49 | 111.39 | 299.8 | 41.8 | 97 | 102 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
型式 / 規格 | 柱塞行程 (mm) | 爪行程(直徑) mm | 最高迴轉速 r.p.m (min-1) | 最大拉力 kgf (KN) | 最大靜夾持力 kgf (KN) | 最大設定油壓壓力 kgf/cm2 (Mpa) | 淨重 (kg) | 搭配油壓 缸型號 | 夾持範圍 |
CL-15DP | 35 | 16 | 3000 | 8260 (81) | 25290 (248) | 32 (3.1) | 104.1 | L2035(L2035RE) | Ø68~Ø381 |
CL-18DP | 35 | 16 | 2700 | 8260 (81) | 25290 (248) | 32 (3.1) | 138.5 | L2035(L2035RE) | Ø100~Ø450 |
CL-21DP | 35 | 16 | 1900 | 8650 (85) | 27000 (265) | 33 (3.2) | 204.8 | L2035(L2035RE) | Ø80~Ø530 |
CL-24DP | 35 | 16 | 1700 | 8650 (85) | 27000 (265) | 33 (3.2) | 260 | L2035(L2035RE) | Ø155~Ø610 |
CL-32DP | 35 | 16 | 1100 | 8650 (85) | 27000 (265) | 33 (3.2) | 455.4 | L2035(L2035RE) | Ø155~Ø800 |
CL-40DP | 35 | 16 | 800 | 8650 (85) | 27000 (265) | 33 (3.2) | -- | L2035(L2035RE) | Ø155~Ø1000 |
